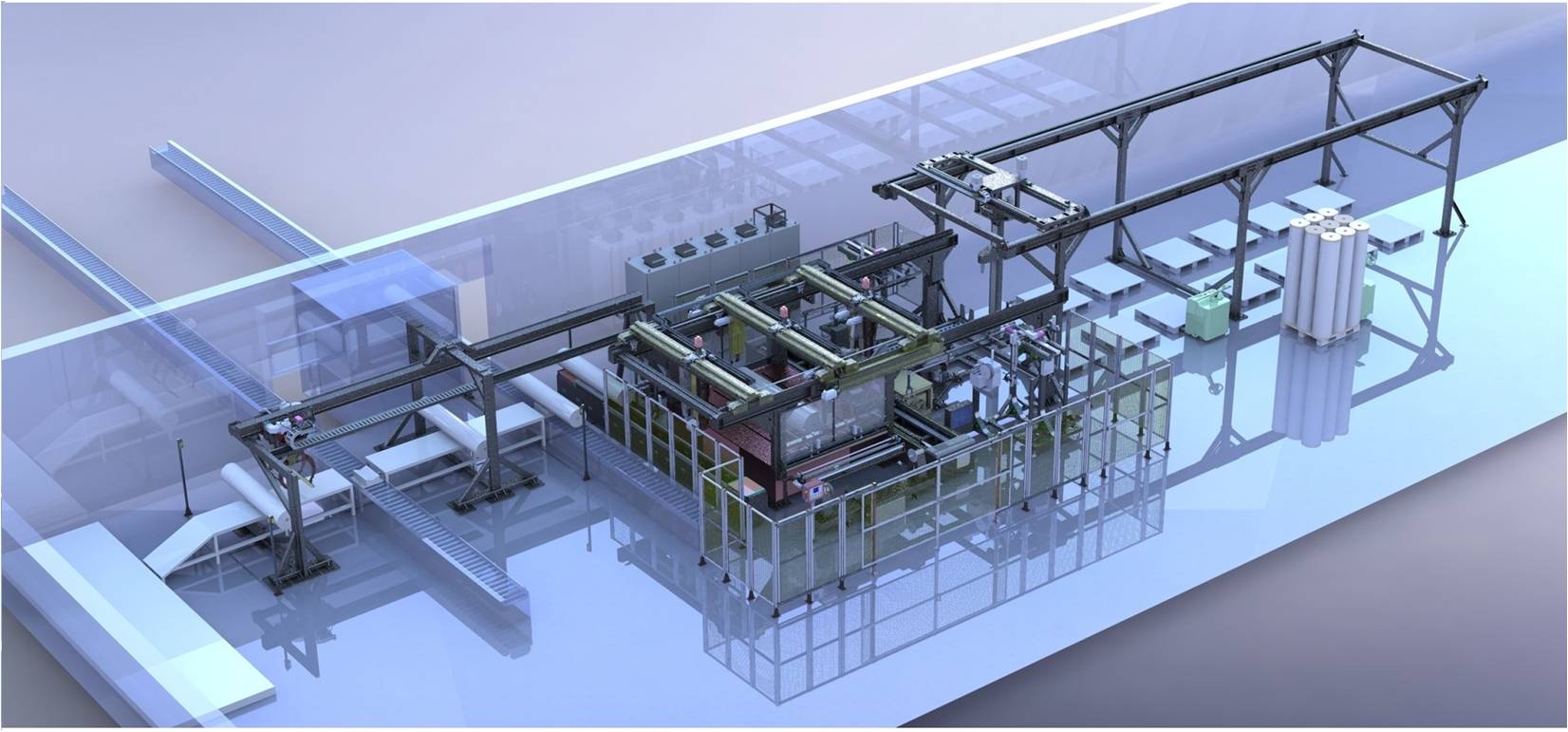

In film industry, different kinds of film for different applications are made by different material , most manufacturers supply with slitting machine, the film rolls after slitting need to be protected by packaging during the transportation.  SIMCHENG research and develop the automatic packaging machine which can pack the slitted film automatically.

Equipment parameters standard

Packing method     Bubble film / foam  pad / paper  cover / tape / weighing / labeling
Packaging speed     Continuous  rewind speed: 25 seconds/roll  (≤±10%)140 rolls/ H.
Packing width           280-2400 mm
packing diameter        250-550 mm
Production downtime     ≤15 min/8hours
maximum weight per roll   500 Kgs

Equipment operator        1-2 persons

Equipment functions

Packaging, weighing, labeling, coding, automatic stretch film support, AGV automatic replacement tray to temporary storage area

Equipment advantages

1. Reduce the labor cost of enterprises and solve the recruitment difficulties in special areas.
2. Packaging machine system and ERP system will centralize processing management for label information, in and out of the warehouse, to reduce the amount of extended labor;

3. Solve the safety risks to employees when packaging heavy film rolls and solve problem of  man-made damage.

4. Enhance the degree of automation of enterprises,  which makes the film packaging more standardized;
5.Simple operation, suitable labor quantity, remote control on the equipment , real time assistance on      operation dynamic .
